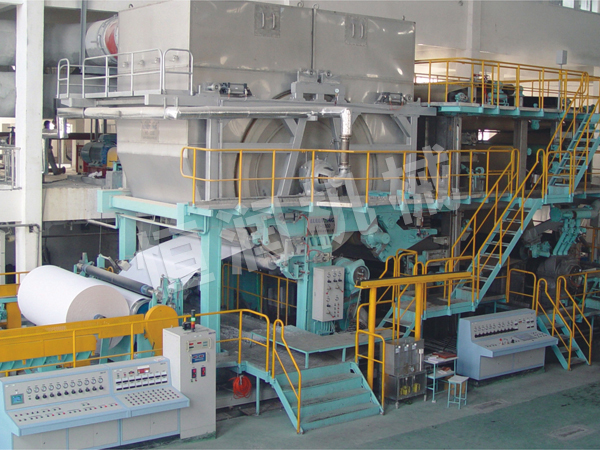

Technical parameters of 2850-1400 crescent toilet paper machine

1 production varieties: toilet paper

2 copy quantity: 13 ~ 25g/m2

3. Net paper width: 2850mm

4 working speed: 1300m/min (dryer)

Design speed: 1400m/min

Dynamic balance speed: 1600m/min

Main gauge: 3900mm (subject to final design)

Transmission mode: ac frequency conversion speed regulation sub-transmission

Main transmission power: 380kW

Production capacity: 65 tons

11 overall dimension: 20000× 11,000 ×9000 (length × width × height)

Paper machine form: crescent shaper sanitary paper machine, single layer layout

Maximum component weight: about 45t dryer
